FG Diamond Bur Shapes - Complete Guide with ISO Codes

Shape	ISO#	Ref.

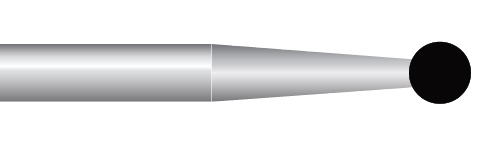

ROUND	001, 697	801, 801L

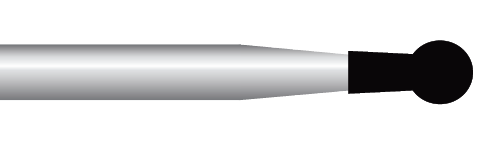

ROUND with collar	002	802

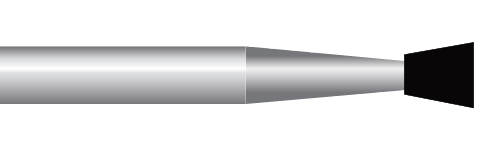

INVERTED CONE short head	010	805

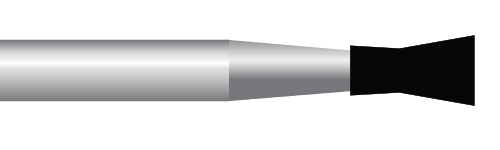

INVERTED CONE with collar	019	806

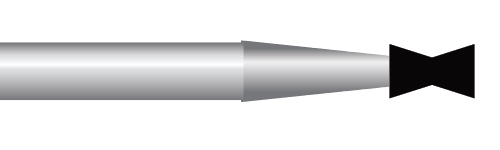

DIABLO	032, 032L	813, 813L

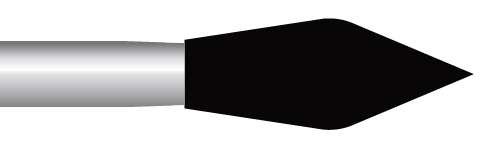

POINTED BUD	033	899

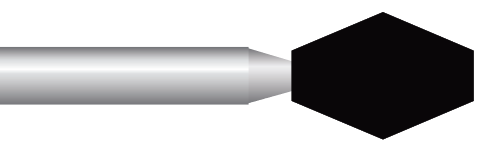

BARREL	038, 039	811S, 811

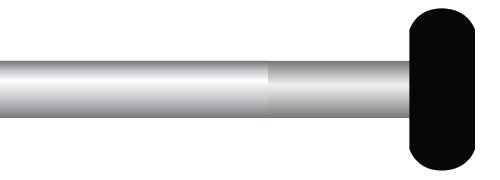

WHEEL	041	815

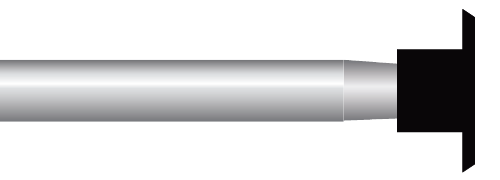

WHEEL with shoulder	055	824

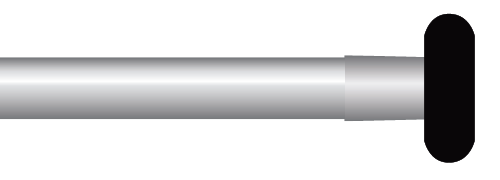

WHEEL rounded rim	067, 068	909

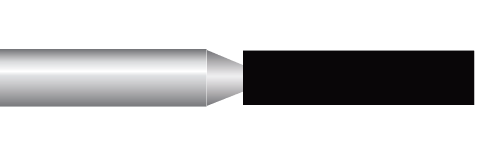

FLAT END CYLINDER	108, 109, 110, 111, 112	835, 836, 837, 837L

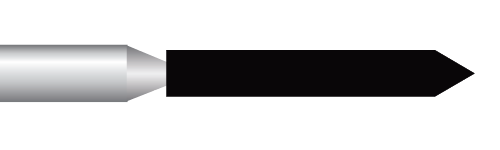

BEVELED CYLINDER	129, 130, 131	884, 885, 886

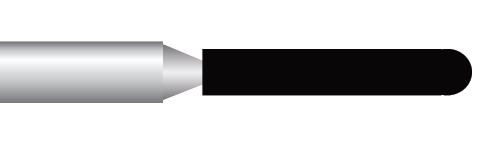

ROUND END CYLINDER	138, 139, 140, 141, 142	838, 880, 881, 882
KS CYLINDER	146	881KS

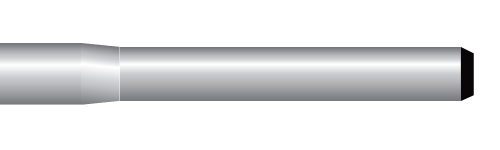

END CUTTING CYLINDER	150	839

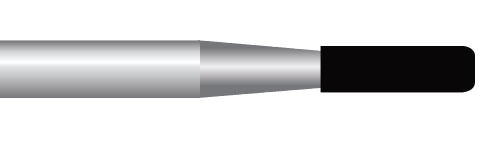

ROUND EDGE CYLINDER	156, 157, 158	835KR, 836KR, 837KR

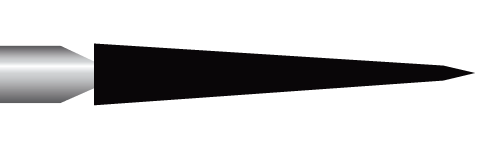

POINTED CONE	161, 164, 165, 166, 167	851, 852, 858, 859, 859L
FLAT END TAPER	169, 170, 171, 172, 173, 174	845, 846, 847, 848, 848L

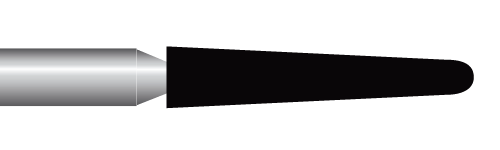

FLAME OGIVAL SAFE END	190	------

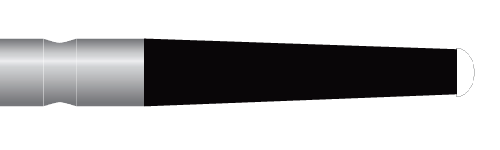

ENDO ACCESS - SAFE END	219, 220	------

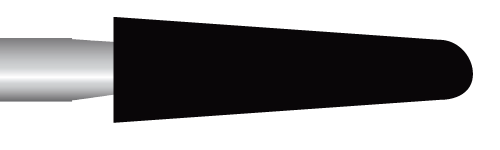

ROUND END TAPER	196, 197, 198, 198L, 199, 200	849, 855, 856, 856L, 850, 850L

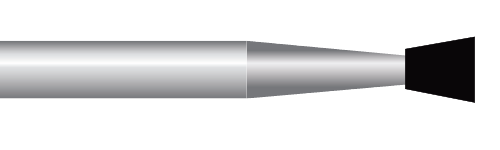

INVERTED CONE	225, 226	807, 807L
PEAR	233, 234, 237, 238	830, 830L, 830R, 830RL

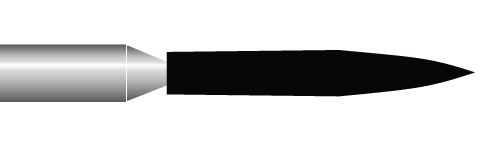

FLAME	243, 246, 247, 248, 249, 250	860, 861, 862, 863

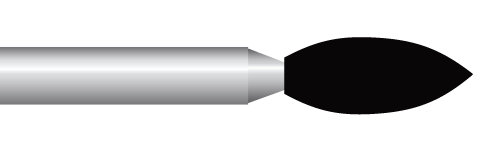

BUD / FOOTBALL	254, 257	831, 368

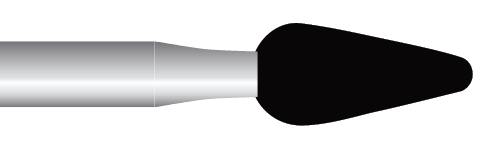

BUD slender	263	369

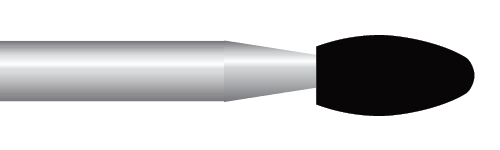

EGG	277, 277L	379, 379L

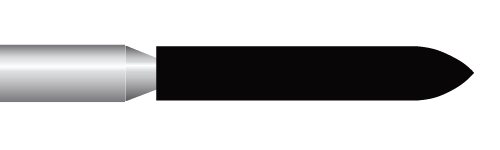

TORPEDO	288, 289, 290	877, 878, 879

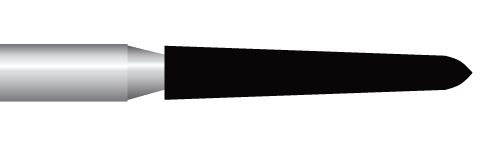

GINGIVAL CURETTAGE	297, 298, 299	877K, 878K, 879K

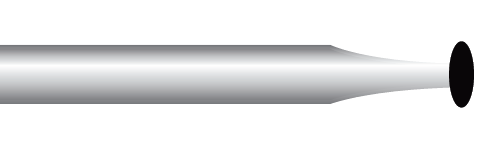

LENTICULAR	304	825

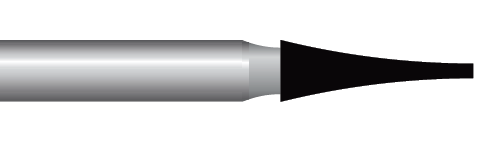

INTERDENTAL	465	392

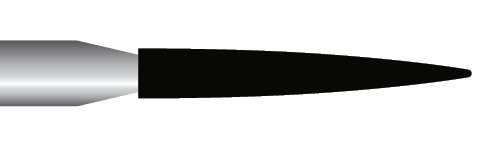

POINTED FLAME	496	------

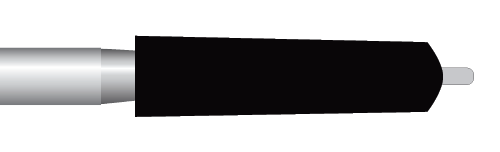

GUIDE PIN CYLINDER	508C	------

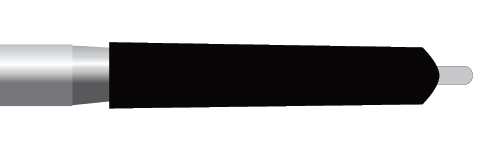

GUIDE PIN TAPER	508T	------

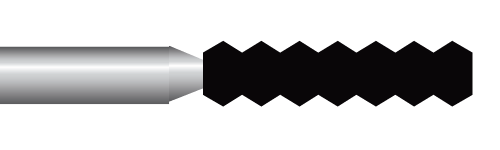

GROSS REDUCTION CYLINDER	511, 512, 513, 514	RC5, RC7, RC8, RC9
GROSS REDUCTION TAPER	516, 517, 519, 521	RT4, RT6, RT8, RT9

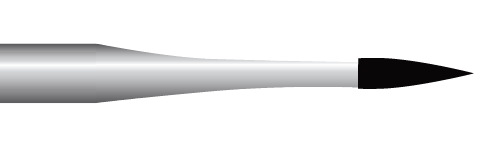

FLAME NEEDLE short head	536, 539, 540	883S, 883, 889

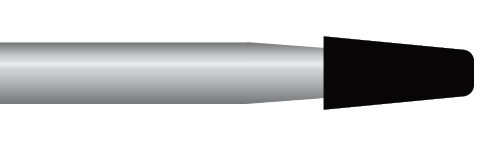

ROUND EDGE TAPER	544, 545, 546, 553	845KR, 846KR, 847KR, 848KR

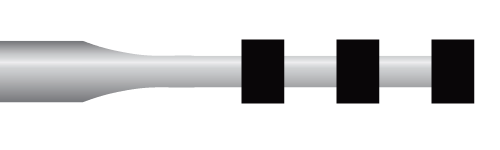

DEPTH MARKER	552	834
