Edenta StripFIX Set SF-SET1

Ergonomic diamond finishing strip system for precision interproximal reduction and polishing

The Edenta StripFIX Set SF-SET1 is a diamond finishing strip system that transforms interproximal work from a challenging task into a controlled, efficient procedure. This system combines an ergonomic handle with diamond strips to deliver superior results in orthodontic IPR, cement removal, and interproximal finishing applications.

Unlike traditional finger-held diamond strips that are difficult to control in limited oral space, the StripFIX system provides enhanced stability, precision, and operator comfort through its innovative handle design and quick-change strip mounting system.

The click-plug system enables easy, quick replacement of the diamond strip holders. The swivel-mounted diamond strip holders can each be locked in 4 positions. This ensures that the optimum working position (angle) of the diamond strip is fixed to enable easy access to the anterior and posterior teeth in the oral cavity. All components of the StripFIX finishing system are autoclavable and re-usable.

Applications

Orthodontic Procedures:

• Interproximal Reduction (IPR) - Precise enamel reduction for orthodontic space creation
• Aligner Therapy - Creating space for tooth movement in clear aligner cases
• Wire Orthodontics - Controlled stripping for bracket and wire cases
• Retention Phase - Final IPR refinements before retention

Restorative Dentistry:

• Cement Removal - Removing excess cement after crown, bridge, inlay, onlay, or veneer cementation
• Interproximal Finishing - Polishing and finishing interproximal composite fillings
• Overhang Removal - Eliminating excess filling material between teeth
• Margin Refinement - Smoothing restoration margins

Cosmetic Dentistry:

• Black Triangle Reduction - Recontouring for improved aesthetics
• Contact Point Adjustment - Creating ideal interproximal contacts
• Veneer Finishing - Refining interproximal veneer margins

Dental Hygiene:

• Surface Smoothing - Creating smooth surfaces to reduce plaque retention

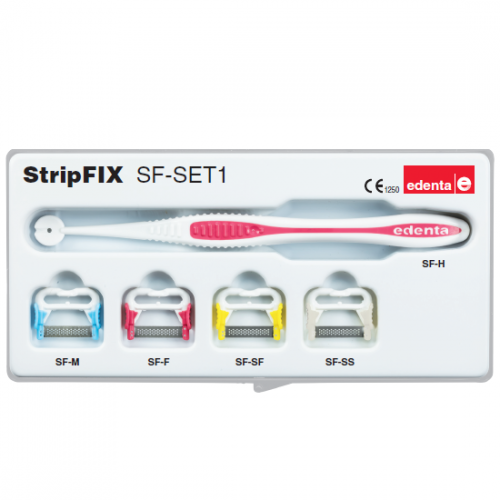

Kit Contents

1x Ergonomic Handle (SF-H)

• User-friendly design with special grip recess
• Click-plug system for instant strip changes
• 4-position adjustable diamond strip holder
• Enhanced control for reliable, precise work
• Autoclavable and reusable construction

4x Single-Sided Diamond Strips (One of Each Grit):

SF-M (Blue) - Medium Grit

• Particle Size: 46 μm
• Thickness: 0.13 mm
• Use: Initial enamel reduction and bulk material removal

SF-F (Pink) - Fine Grit

• Particle Size: 30 μm
• Thickness: 0.10 mm
• Use: Intermediate smoothing and refining

SF-SF (Yellow) - Super Fine Grit

• Particle Size: 15 μm
• Thickness: 0.08 mm
• Use: Final polishing and finishing for smooth surfaces

SF-SS (White) - Saw Strip

• Thickness: 0.04 mm
• No diamond coating
• Use: Creating separation and initial access in tight contacts

Technical Specifications

Manufacturer: Edenta AG, Switzerland

Product Code: SF-SET1

Handle Material: Medical-grade autoclavable polymer

Strip Material: Stainless steel substrate with single-sided diamond coating

Strip Design: Perforated for enhanced effectiveness and debris removal

Strip Length: Approximately 4.5 mm working surface

Strip Width: 2.5-3.0 mm

Coating Type: Single-sided diamond (one side coated, one side smooth)

Color Coding: Visual identification system for quick grit selection

Sterilization: Full autoclave compatibility (134°C)

Country of Origin: Switzerland

Key Features

Ergonomic Handle Design

• Special grip recess provides superior control and comfort
• Reduces hand fatigue during extended procedures
• Enhanced tactile feedback for precise material removal
• Professional-grade construction for long-term reliability

Click-Plug System

• Instant strip mounting and removal
• Secure strip retention during use
• No tools required for strip changes
• Quick transition between different grits

4-Position Adjustable Holder

• Swivel-mounted strip holder locks in 4 positions
• Optimizes working angle for anterior and posterior access
• Provides ideal angulation for different tooth positions
• Ensures consistent strip orientation

Single-Sided Diamond Coating

• Diamond coating on one side only
• Smooth backside protects adjacent tooth surfaces
• Visual indicators differentiate diamond from non-diamond side
• Reduces risk of unintended enamel removal

Clinical Benefits

Enhanced Precision:

• Ergonomic handle provides superior control compared to finger-held strips
• 4-position adjustment enables optimal access to all tooth surfaces
• Single-sided coating prevents accidental adjacent tooth damage
• Consistent, predictable material removal

Operator Comfort:

• Ergonomic design reduces hand and finger strain
• Better control requires less grip force
• Improved visibility and access
• Natural working positions reduce fatigue

Replacement Strips Available

Individual replacement strips sold separately in packs of 10:

• ESF-M - Medium grit (46 μm, 0.13mm) - Blue - 10/pack
• ESF-F - Fine grit (30 μm, 0.10mm) - Pink - 10/pack
• ESF-SF - Super fine grit (15 μm, 0.08mm) - Yellow - 10/pack
• ESF-SS - Saw (0.04mm, no diamond) - White - 10/pack

All replacement strips feature the same perforated, single-sided design and are fully compatible with the SF-SET1 handle system.

Transform your interproximal work with the Edenta StripFIX Set SF-SET1 – the professional's choice for controlled, efficient, and precise diamond finishing. Swiss quality, ergonomic design, and complete versatility in one comprehensive system.

The click-plug system enables easy, quick replacement of the diamond strip holders. The swivel-mounted diamond strip holders can each be locked in 4 positions. This ensures that the optimum working position (angle) of the diamond strip is fixed to enable easy access to the anterior and posterior teeth in the oral cavity. All components of the StripFIX finishing system are autoclavable and re-usable.
